Elecrow 5 inch Touch Screen 800×480 TFT LCD Display HDMI Interface Supports Raspberry Pi 2B 3B 3B+ BB Black, Banana Pi Windows 10 8 7

$69.99 (as of July 16, 2019, 9:38 am) & FREE Shipping. Details $36.99

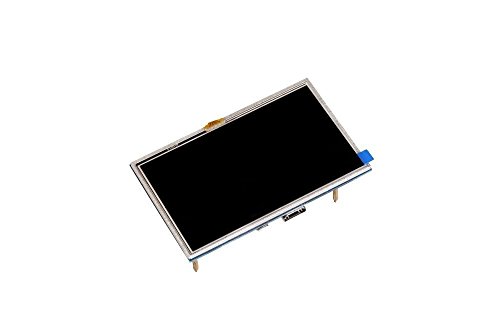

Elecrow IPS TFT LCD displayThis 5 inch TFT display with touch function is a mini panel-mountable HDMI monitor. It's small and simple, and the shape makes it easy to attach

Category: .

Usually ships in 24 hours

Quantity

Elecrow IPS TFT LCD display
This 5 inch TFT display with touch function is a mini panel-mountable HDMI monitor. It’s small and simple, and the shape makes it easy to attach to a electronic product. Although the 800×480 common HDMI display is made for Raspberry Pi, we can use it other where not only for Raspberry Pi.

Features

Designed for Raspberry Pi, an ideal alternative solution for monitor
Supports any revision of Raspberry Pi (directly-pluggable)
800×480 resolution, better display
Good touch response
Large viewing angle
Fast response time
For Raspberry Pi 2B 3B 3B+
With detail user guide and image

Specifications

5 inch TFT Resistive touch screen display, 800×480 Resolution
HDMI input
Usb power, 5V
Lcd driver IC: ILI9486L
Refresh rate: 60HZ
Lcd Size: 120mm*78mm

Package list

5 inch Touch LCD Display x1
HDMI connector x1
Touch pen x1
CD x 1

Note
After install the driver that could get the touch function work.
Attention: when you receive the item and try it find the screen appear BLANK WHITE, WHITE LINE, BLACK SCREEN, NO TOUCH FUNCTION and FLASHING etc, please do not worry, install the following driver will be solved.
As computer monitor, the touch function will be unavailable.

Tips for driver:
Basic for Raspbian Jessie with PIXEL
Step 1:Download and Burn the Raspbian IMG(If you have already installed the system, please jump to step2)I
https://www.raspberrypi.org/downloads/raspbian/
Step 2: Open terminal and Download the driver on RPI
Run:
git clone https://github.com/goodtft/LCD-show.git
Step 3: Install driver
Run:
chmod -R 755 LCD-show
cd LCD-show/
sudo ./LCD5-show

If the monitor need to be calibrated.
sudo apt-get install -y xinput-calibrator
Click the Men button on the task bar, choose Preference -> Calibrate Touchscreen

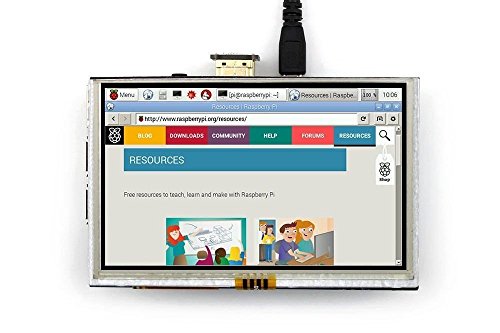

5 inch HDMI display with 800*480 LCD screen, high resolution picture, large viewing angle, fast response time, full color display.
With resistive touch screen, comes with a touch pen and easy to use.
It supports manual back light control, back light can be turn off to lower power consumption.

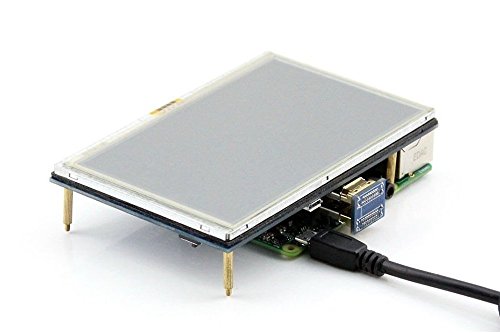

Compatible with all models of Raspberry Pi and working perfect for Raspberry Pi 2B/ 3B/ 3B+ etc.
Not only for mini-PCs, it can work as a regular portable HDMI monitor.

Binding

Electronics

Brand

Elecrow

EAN

0602731537505

EANList

0602731537505

Label

Elecrow

Manufacturer

Elecrow

Model

RPA05010R

MPN

RPA05010R

PackageQuantity

1

PartNumber

RPA05010R

ProductGroup

PC Accessory

Publisher

Elecrow

Studio

Elecrow

UPC

602731537505

UPCList

602731537505
