A 75 watt output soldering iron with temp range of 200°C – 480°C / 392°F – 896°F with Silicone cord that are extremely pliable and virtually.
Suitable for SOIC, CHIP, QFP, PLCC, BGA and temperature-sensitive components.
Fits for heating shrink, drying, lacquer removal, viscidity removal, ice-out, pre-heating and glue soldering.
ESD safe design of soldering iron to protect sensitive components.
Extremely low noise and space saving design.
What’s in the box?
1 x YIHUA 862BD+ 2 in 1 Hot Air Rework and Soldering Station
1 x YIHUA 862BD+ Removable Soldering Iron with Silicone Cord
1 x YIHUA Soldering Iron Stand

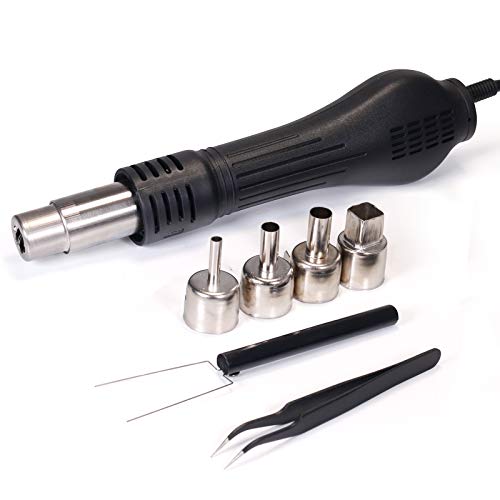

1 x YIHUA Hot Air Gun with Silicone Cord
4 x Hot Air Gun Nozzles

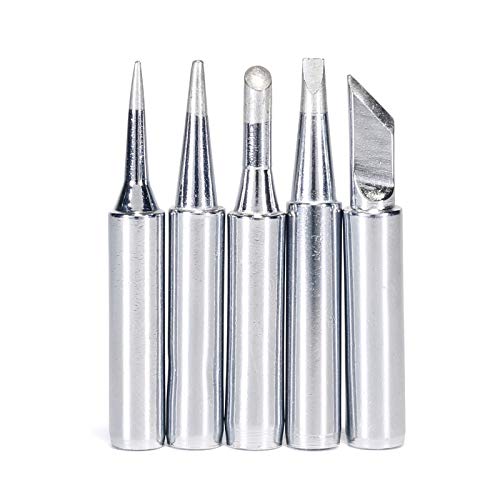

5 x Assorted Sizes of Soldering Tips
1 x Pinpoint Anti-static / Anti-magnetic Tweezers
1 x Roll of Lead Free Solder Wire

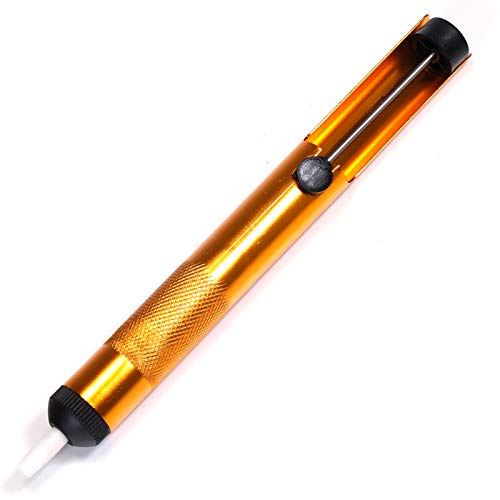

1 x Desoldering Pump
1 x Iron Tips Cleaner(includes copper wire cleaning ball)
1 x IC Popper
- Model: YIHUA 862BD+
- Temperature Compensation Function: ±90°F/±50°C
- Sleep Mode: 0-99 Minutes
- Total Power Consumption: 720 Watts
- Air Flow Type: Brushless Fan With Soft Air
- Max Air Flow Volume: 120L/min
- Hot Air Gun: 500 Watts – Temperature Range 212° F ~ 896°F/100°C ~ 480°C with Auto Cool Down Safety Feature
- Hot Air Gun Temperature Stability: ±1.8°F/1.0°C
- Hot Air Gun Tube Material: 100% Silicone
- Soldering Iron: 75 Watts – Temperature Range 392°F ~ 896°F/200°C ~ 480°C
- Soldering Iron Temperature Stability: ±3.6°F/2.0°C
- Soldering Iron Cord Material: 100% Silicone
- Working temperature: 32~122℉/0~50℃
- Storage temperature: -4~176℉/-20~80℃
- Product Dimensions: 124mm x 187mm x 249mm / 4.88” x 7.36” x 9.80”
- Shipping Weight: 8.8 Lbs (4.0 KG).
- Actual Unit Weight: 7.7 Lbs (3.5 KG).
- AC 110V/120V – 60 Hz with USA plug
Make sure this fits by entering your model number.
【Zilog Dual Core Microcomputer Processor】- This unit now features a Three LED tubes display and you can easily change the LCD digital readouts back and forth “Centigrade to Fahrenheit” for the soldering iron and hot air temperatures with the push of a button.
【PID Temperature Control Technology】This unit features Temperature Control Technology which the program will cycle every 20 milliseconds to detect the actual temperature of the soldering iron’s heating element, quickly correct it with a rapid return to the correct set temperature.
【Exclusive Air Gun Manual/Automatic Function】The air gun automatic function is a safety measure which ensures the heat is automatically cut off when the air gun is in its holder.
【Air Flow Adjustable and Readable】Dual blue LED digital displays to show precision temperature for hot air gun & soldering iron and one blue digital display to show air flow (20 – 80).
【1 Year Warranty – USA Exclusive – User-friendly Design Features】Celsius/Fahrenheit Programmable, Temperature Correction Feature: -50 °C to +50 °C, Soldering Iron Sleep Function, Hot Air Gun Manual /Automatic Function, Hot Air Gun No Air Protection Function.
