Description
Featuers
2 in 1 Dual Channel Oscilloscope + Multimeter 250M Sampling rate, 40MHZ Bandwidth.
10MV-10V Vertical resolution
Minimalist keyboard design simplify operation，easy to use
Auto automatic measuring function
Key tone settings
Color highlight LCD screen,legible even in bright sunligh
Adjustable backlight brightness, backlight
Auto power off
Digital voltmeter function.
Specification
Sample Rate Range: 250MSa/s(Single-channel), 125MSa/s(Dual-channel)
Waveform Interpolation: (sin x)/x
Record Length: Max. 6K for single-channel; 3K samples per dual-channel
SEC/DIV Range: 5ns/div~500s/div 1, 2, 5 sequence
A/D Converter: 8-bit resolution,each channel sampled simultaneously
VOLTS/DIV Range: 10mV/div~10V/divat input BNC Bandwidth Limit, typical: 20MHz
Low Frequency Response (-3db): ≤10Hz at BNC
Rise Time at BNC, typical: ≤5ns
DC Gain Accuracy : ±3% for Normal or Average acquisition mode, 10V/div to 10mV/div
Note: Bandwidth reduced to 6MHz when using a 1X probe.
Mode : Auto, Normal, single
Level : ±4 divisions from center of screen
Slope : Rising, Falling, Rising & Falling
Source : CH1/CH2
Supported Probe Attenuation Factors: 1X, 10X, 100X, 1000X
Maximum Input Voltage: 150VRMS

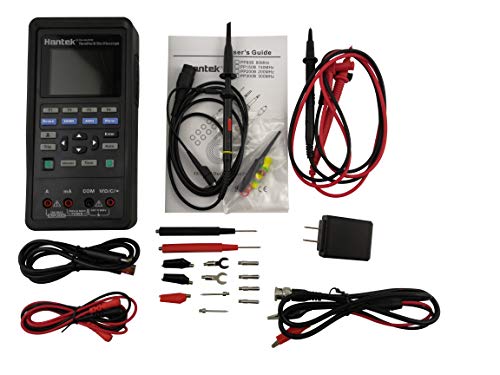

Standard Accessories:
1 * 3-in-1 Oscilloscope
1 * Clip Probes
1 * Test Probe
1 * Power Adapter
1 * USB Type-C Charging Cable
1 * Multimeter Probe
1 * Storage Bag and Manufacturer Certificate
1* Replaceable Test Wires Probes set
Make sure this fitsby entering your model number.
Function: Oscilloscope + Multimeter ; 40 MHz Digital Oscilloscope with 2 channels — Sample Rate Range 250MSa/s(Single-channel), 125MSa/s(Dual-channel). (Waveform Generator can’t be used)
Simplify operation, convenient to use: 250M Sampling rate, 40MHZ Bandwidth. 10MV-10V Vertical resolution; Auto automatic measuring function; Key tone settings, Adjustable backlight brightness, Backlight, duration and auto power off time. Digital voltmeter function, Cursor measurement, reference waveform,waveform Storage function.
Multifunction Digital Multimeter Function, High sensitivity and accuracy, showing clear, stronganti-overload capability, easy to carry. Digital multimeter which can be used to measure AC/DC voltage/current, resistance, diode,capacitance, on-off test.
Large-capacity Lithium Battery + Ultra Low Power + Type C Data Transfer/Charging Interface 18650 replaceable lithium battery power system; Be able to recharged by 5V/2A large current or ordinary computer USB port,allow while charging, very convenient and handy; Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months.
We offer 1 year warranty with 30 days worry-free return, so 100% satisfaction and zero hassle returns guaranteed. Please don’t hesitate to contact us when you use the item.
