Description
FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AT NOOELEC.COM

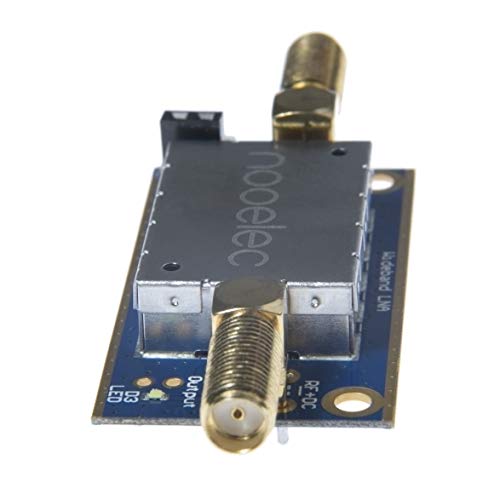

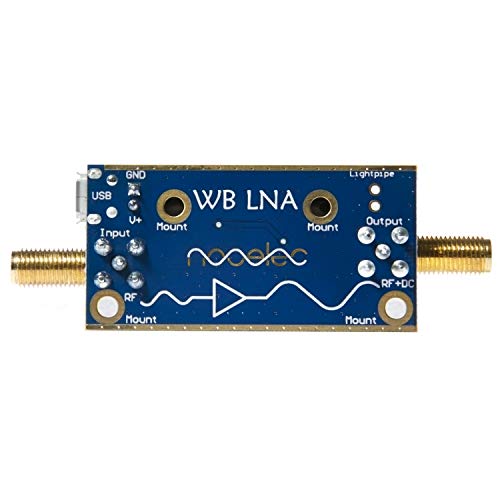

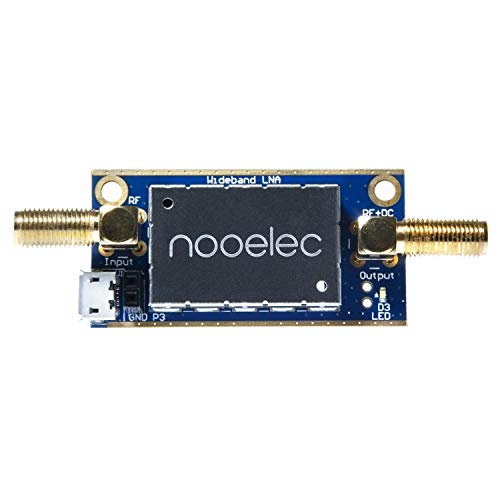

LaNA is a very high performance, wideband LNA module designed for general purpose SDR applications.
Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don’t have a bias-tee capable SDR, you can use the external power options–the microUSB port, or DC barrel connector via the included DC to microUSB adapter. The recommended external power input is 3.3V-5.5V DC.
Though there is protection circuitry on LaNA for overvoltage conditions–and voltages of up to 12V DC should still work and will not damage the device–it is not recommended for long-term usage. Kindly note that damage resulting from overvoltage conditions would not be covered under the standard 2 year warranty.

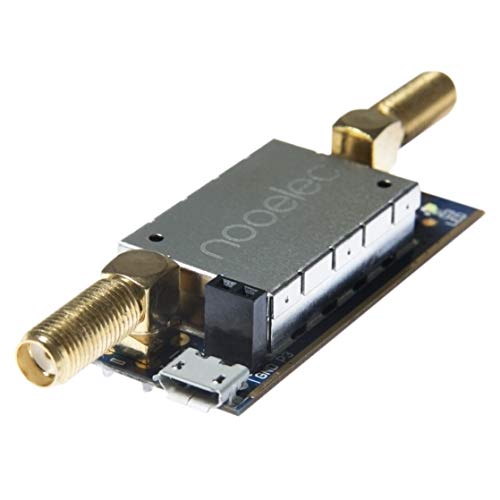

Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
A wideband (20MHz – 4GHz), high-performance, general purpose LNA module available at an extremely competitive price
Higher gain, lower noise figure, lower power consumption and better linearity than modules based on SPF5189Z and similar LNA MMICs
Can be powered through bias tee (3.3V-5V), USB, or DC power
Made in North America. 1 year warranty! A retail version with aluminum enclosure is also available, see Amazon product ID B07XNLJ9X2
NOTE: Some SDRs will require a DC block between the LNA and SDR if utilizing the external power options. For more information review the product page or datasheet: https://www.nooelec.com/datasheets/100802
